Reference and Calibration Systems
The SMC-1502 system is a Portable Reference Meter that is used to verify and calibrate CNG dispensers. It is specially designed and built to work in hazardous areas and complies with the corresponding regulations.

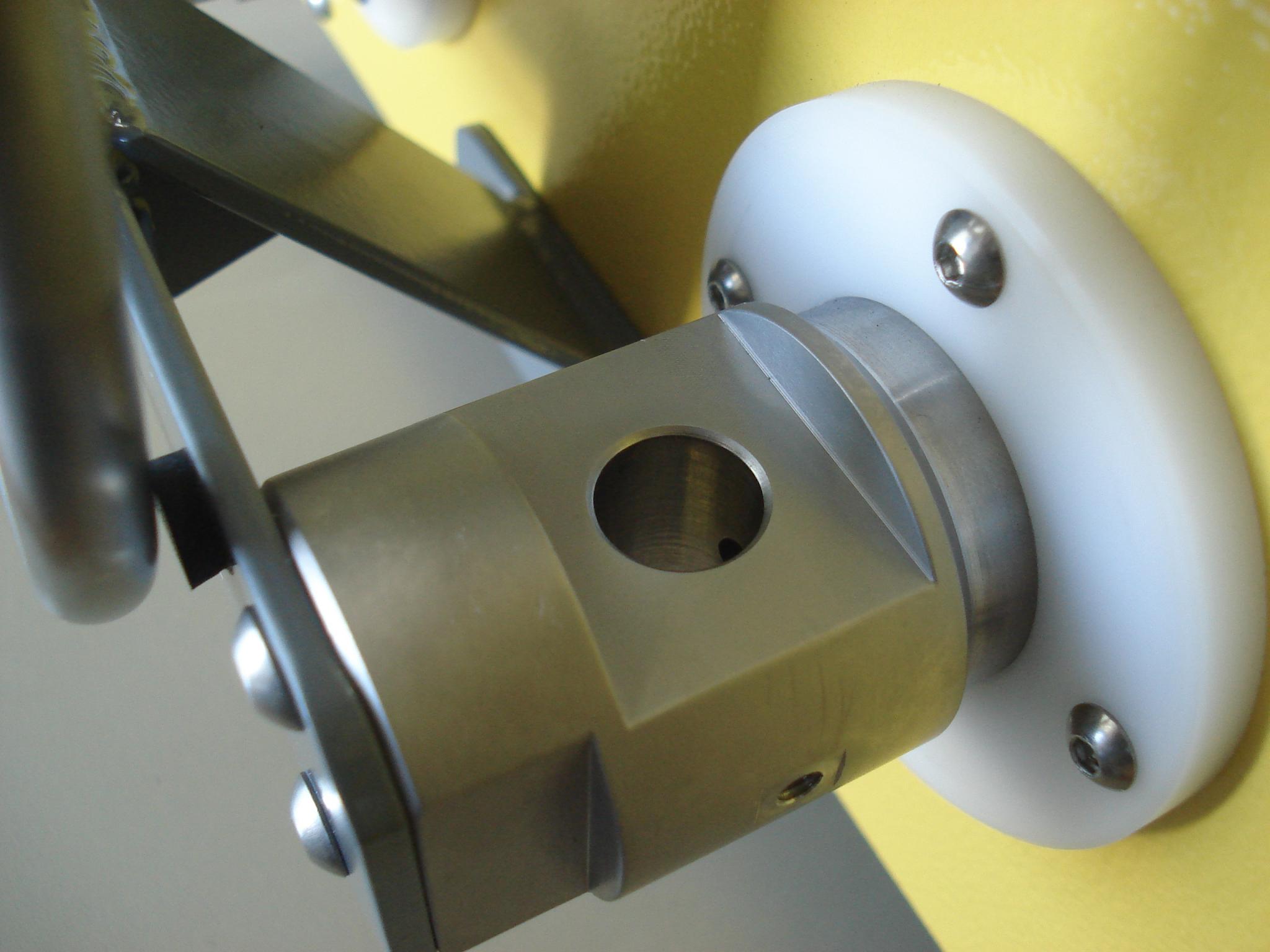

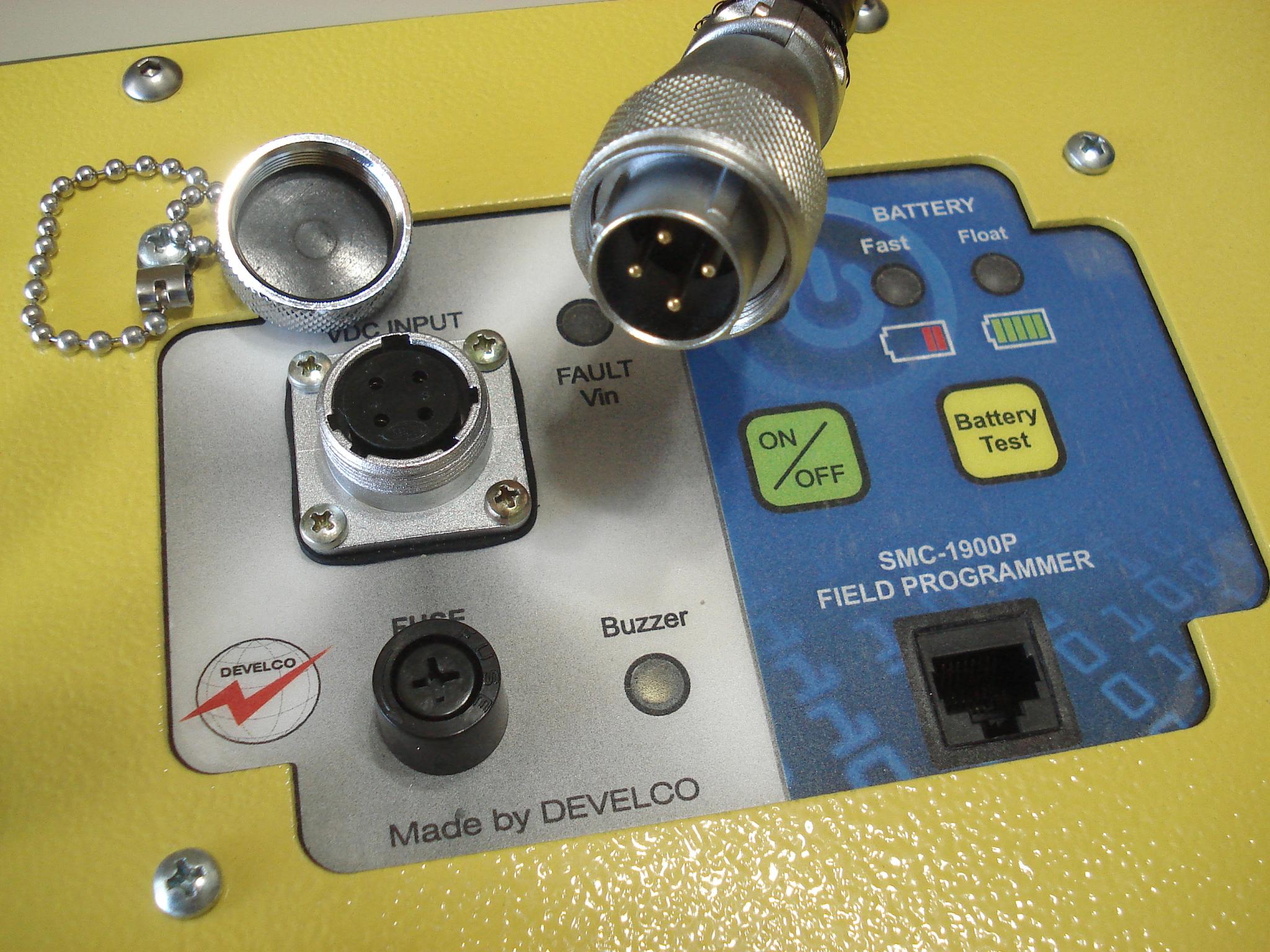

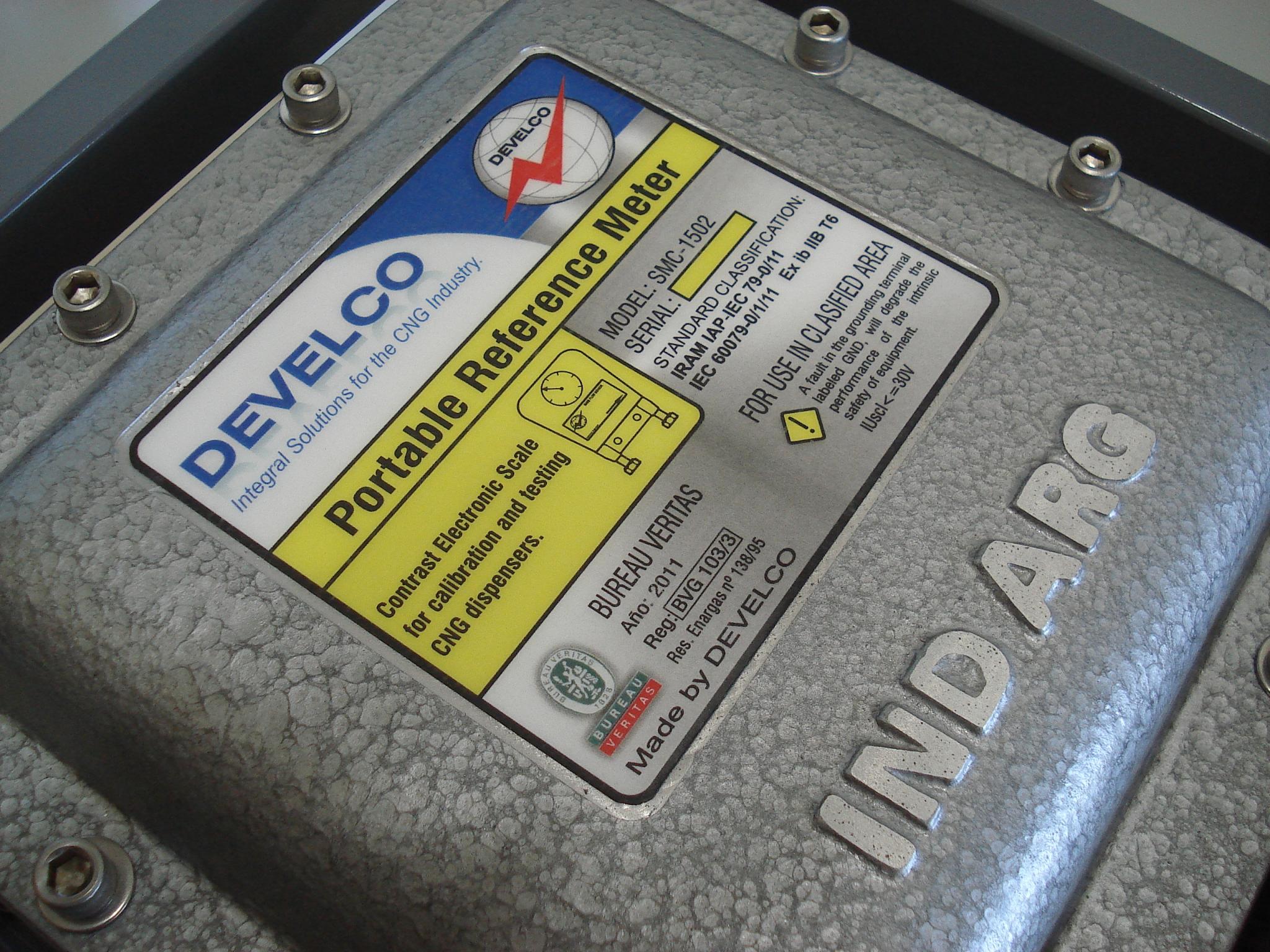

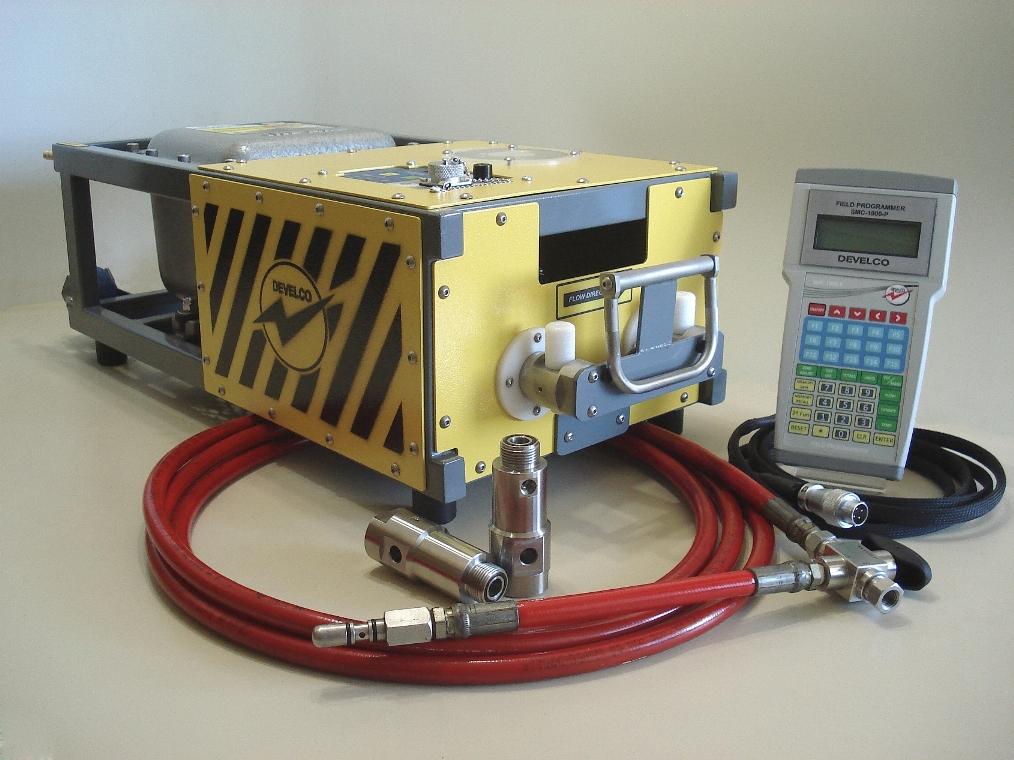

SMC-1502 Portable Reference Meter
The unique Reference Meter on the market with Homologation to work in classified area. It is equipped with a SMC-1200VH Flowmeter of 70 kg / min. high performance measurement, suitable for calibration of low, medium and high flow jets. Controlled by an intrinsically safe handheld, which displays among other parameters: Unit Status, Flow, Totalizers, Temperature and Density. Robust and lightweight structure with wheels for easy portability.

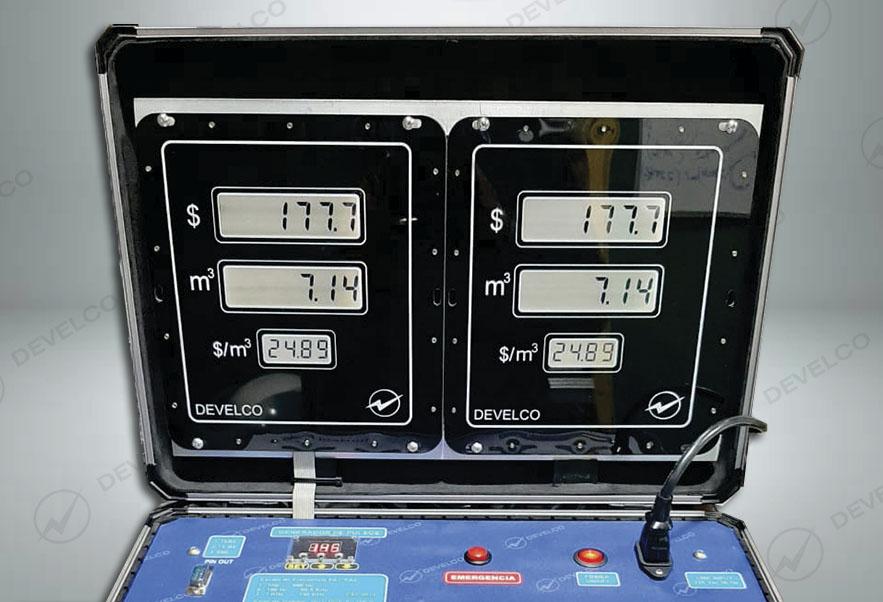

DEVELCO SMC-1100 / TST Electronic Head Test Bench
This equipment has been designed and developed to check the supplier's communications in the field and as emulator of all the functionalities of the DEVELCO measurement system.
Some actions that can be emulated are: excess flow, high pressure cut-off, emergency stop, programmed load, etc.
Features
Test bench to emulate the complete operation of a DEVELCO dispenser.
• Industrial construction with high quality materials.
• Measurements in mm: 425x315x130 (width, length, depth).
• Weight: 5,700 Kgr.

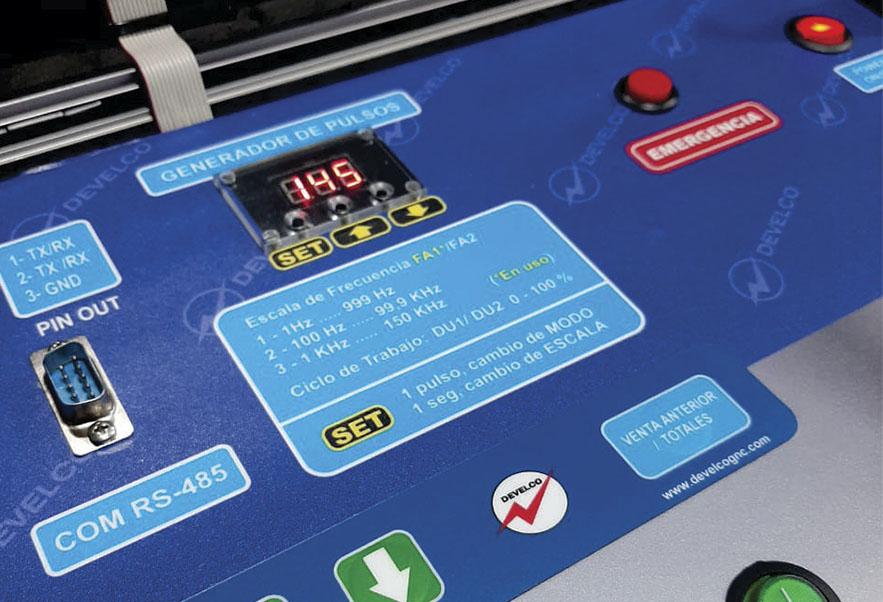

• Pulse generator with variable frequency, to emulate loads.
• RS-485 communication port for automation test.
• Presentation display with white backlight.
• Power supply 220 Vac / 50 HZ.
