DEVELCO System for CNG Dispensers
The SMC-1000 flow measurement system is the set of sensors and electronic circuit boards that make up all the elements necessary to measure, control and record flow.
The integral solution to your needs ...

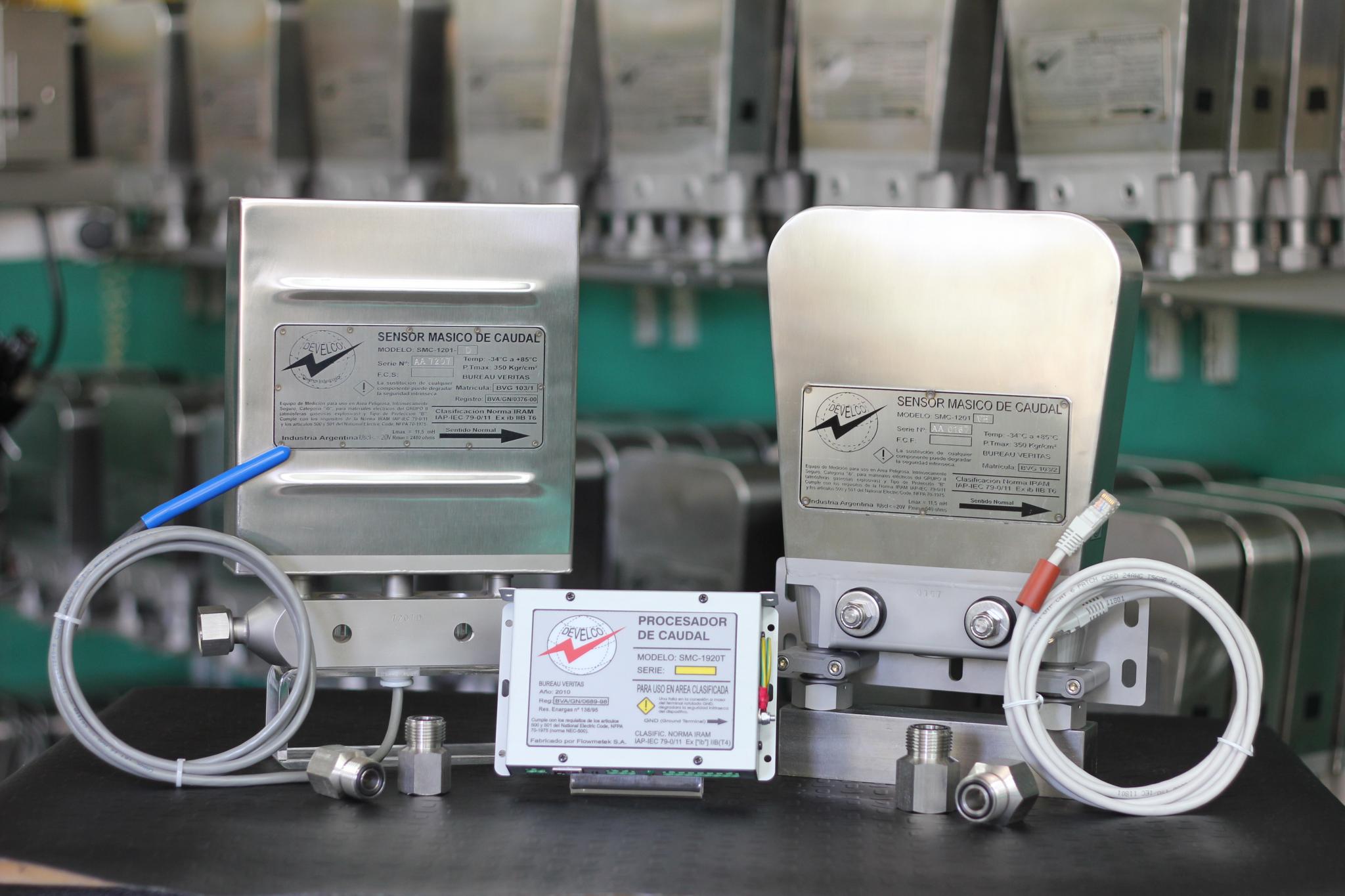

• Mass sensor made entirely of AISI 316L stainless steel.

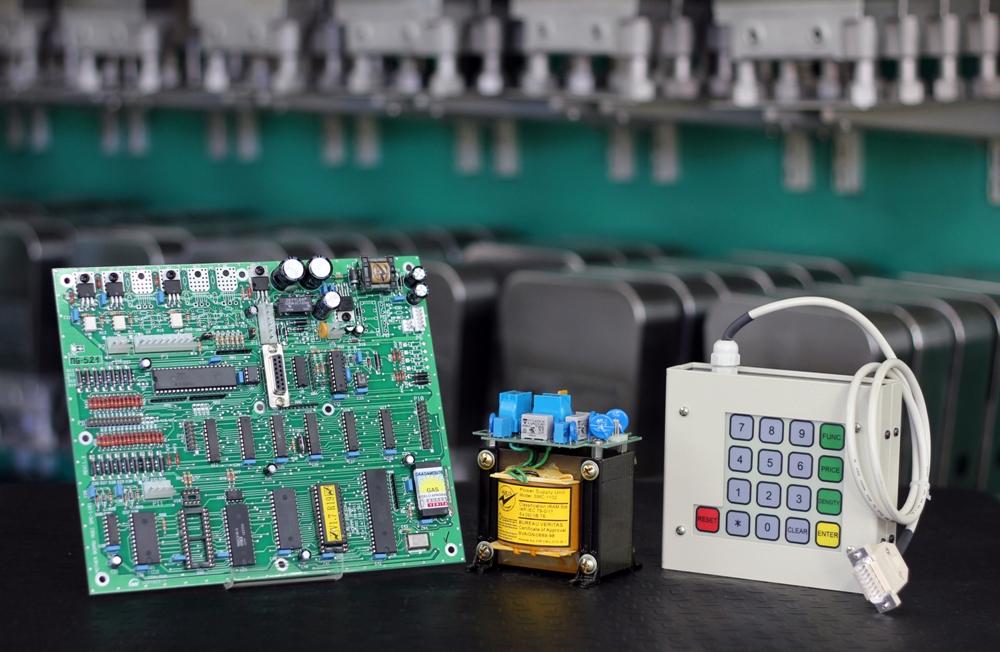

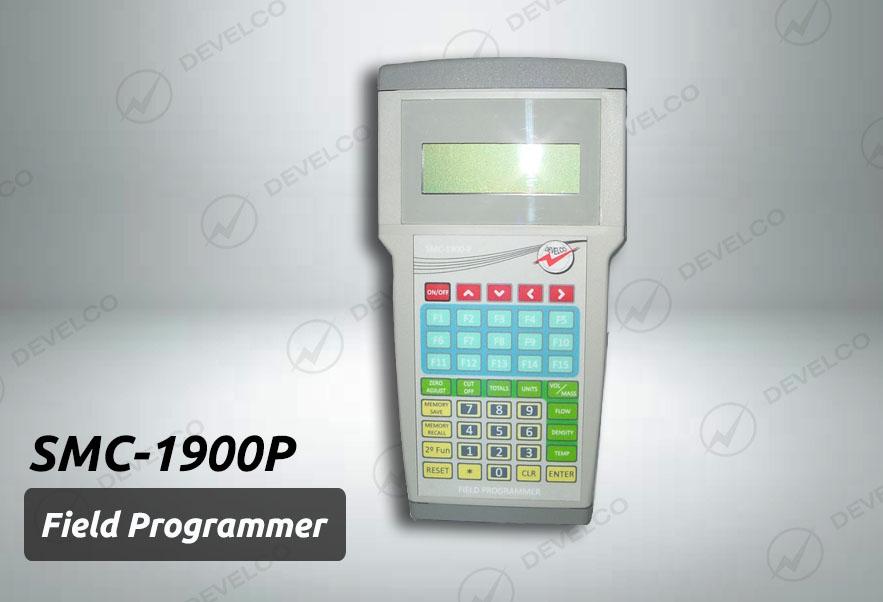

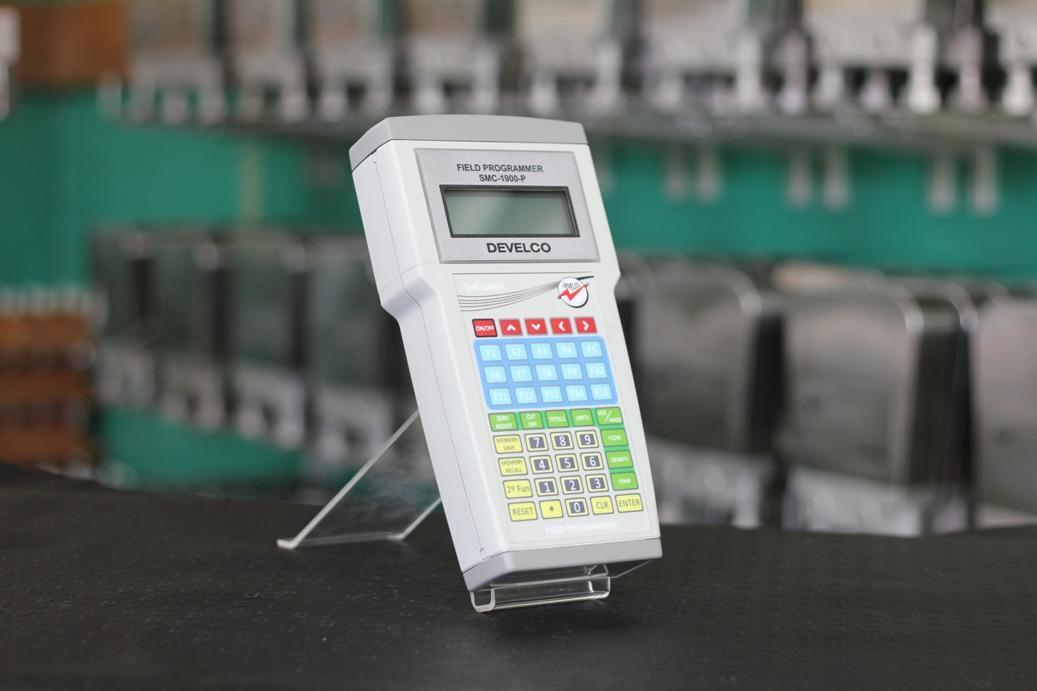

• Fully programmable electronic head via micro keyboard.

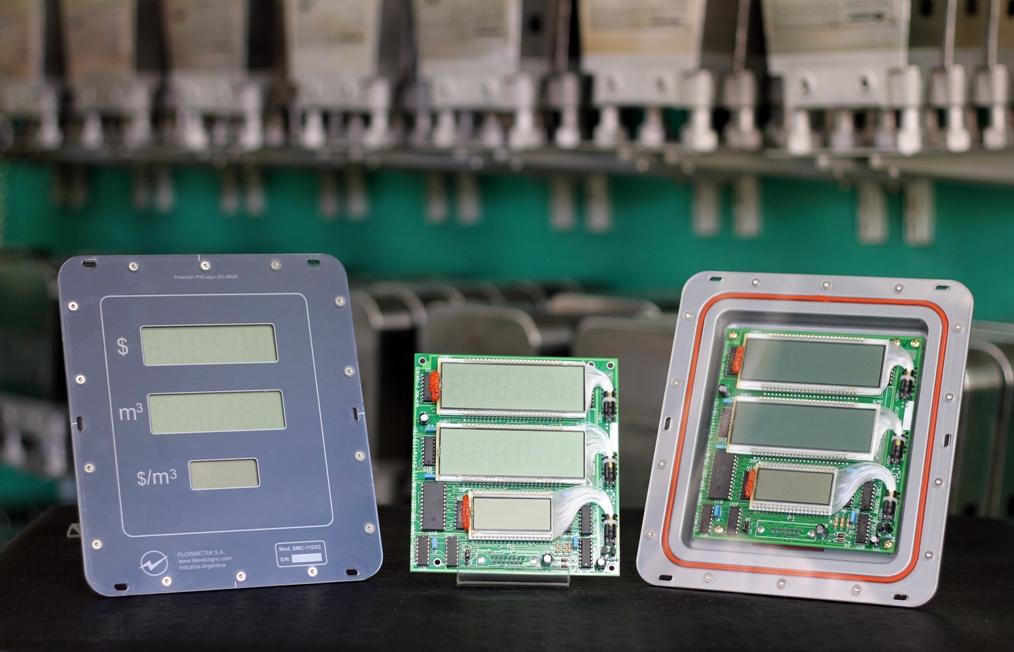

• Presentation units with fiber optic backlight.
• Connections to charge the lamp, the acoustic signal, the pressure switch and the hose switch.
• RS-485 communication interface.
• Flow models of 15, 30 and 70 Kg / min.
• Control of 1 or 3 CNG supply lines.

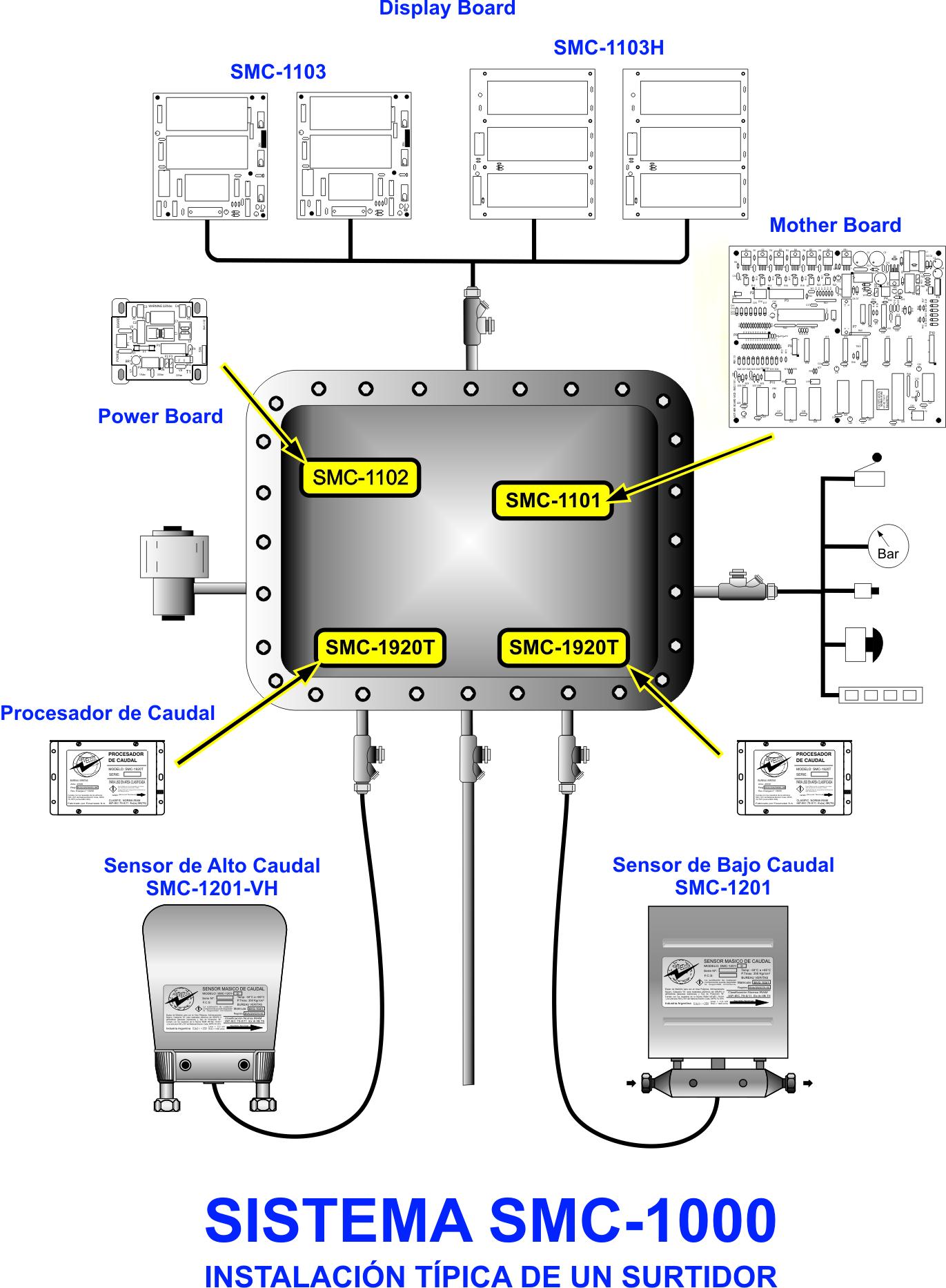

Main components of the SMC-1000 system
