SMC-1100 DEVELCO Electronic Head
The Electronic Head (SMC-1100) consists of a microprocessed system capable of controlling a double vision dispenser, two hoses and up to three ways (six solenoid valves). Together with the Flow Meter (SMC-1200, one for each hose), it constitutes all the necessary instrumentation for the construction of a CNG Dispenser.
Special Features of SMC-1100 Electronic Head
• Dual microprocessor head ensures safe operation, efficiency and reliability.
• Three-way automatic selection system, supervised by the main processor.

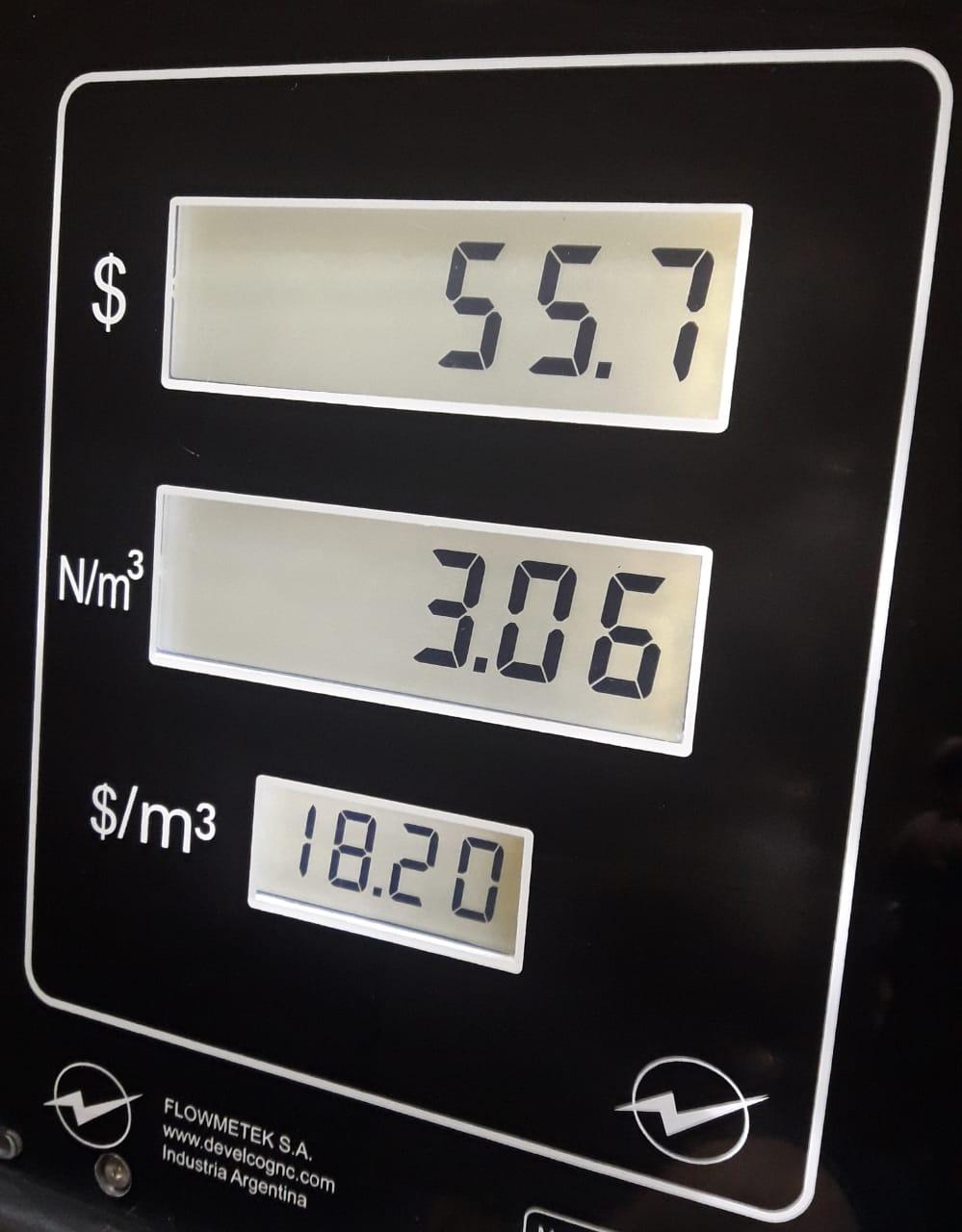

• Liquid quartz displays ensure a long maintenance-free life.
• Intrinsically safe display allow very easy installation.
• Intelligent recognition of start and end of charge.
• Automatic activation of Diagnostic routines at each ignition and off-hook.
• Inviolable Totalizer Registers can be observed by pressing a button.
• Allows you to change the price of gas and density easily through the micro-keyboard of the dispenser.
• Partial records of volume and gas sales can be easily reported.
• Quick indication of previous sale.
• Audible indication of end of charge.
• Audible indication of errors with automatic reports on the display.
• Circuit for early detection of Power Failure.
• Backup battery security.
• EEPROM memory guarantees safe storage of parameters programmed by the user.
• Suppression of line transients and high voltage protection.
Main components of the Electronic Head

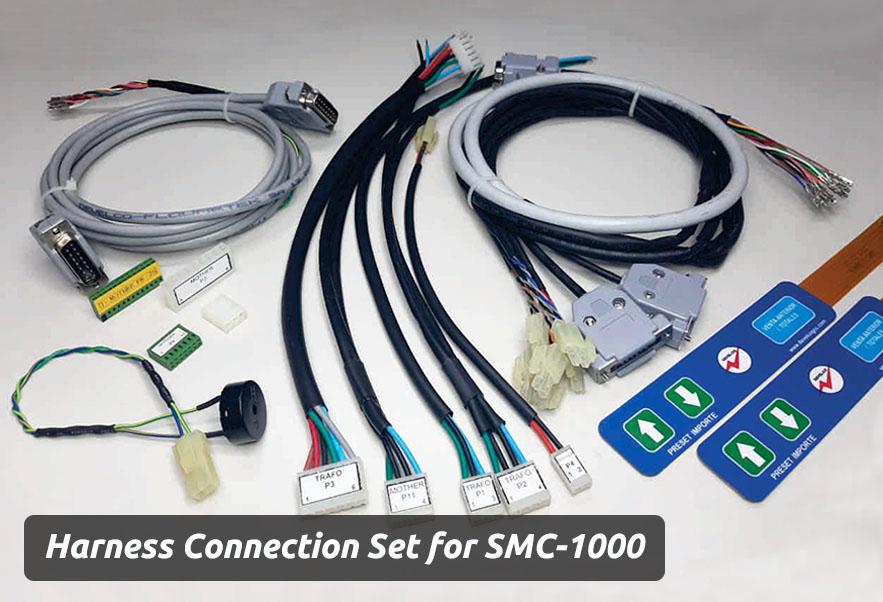

Optional components
